Train turntable
by Thingiverse
Last crawled date: 5 years, 10 months ago

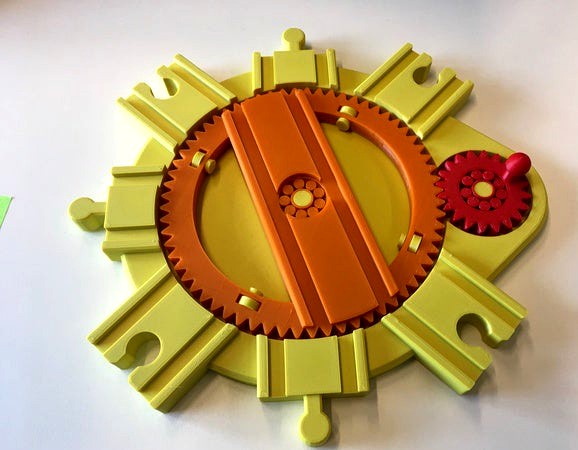

Brio compatible turntable.
If you want a larger or smaller turntable or a different number of rails, you can use the customizer.
The control gear has a fixed size.
Change the "What to show"-parameter to show / render / export the different parts of the turntable
Watch https://youtu.be/ab0iVrlDvDY to see this turntable in action
Credits
The rails are derived from https://www.thingiverse.com/thing:43278
The bearings are inspired by https://www.thingiverse.com/thing:2746804
The gears use the MCAD (involute gears) library which is shipped with OpenSCAD
History
Date
Description
2019-11-19
Added stl files for the default settings, so you only need OpenSCAD if you want to customize your design
