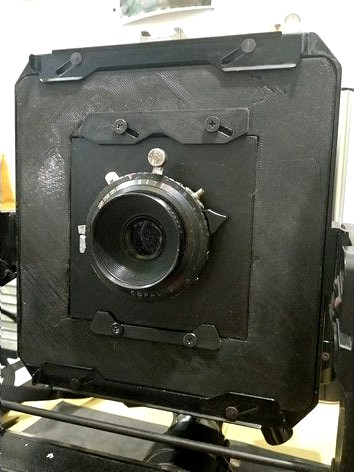

Toyo View Universal Lens Board by rodgsilva
by Thingiverse
Last crawled date: 5 years, 8 months ago
Not a designer here and this was my first ever try to make something.
I just need a simple way to mount some barrel lenses on my Toyo View 45
The smaller board is just 95x95x25mm and the one included here I believe is for copal 0 or m42... I would share then all but I lost my files and those were on a SD card but its pretty simple to do.
For the locking tabs just use 4 M3 screws.
If you use PLA just be aware not use under strong sun light because the pieces may warp.
