Torque Bit Holder
by Thingiverse
Last crawled date: 6 years, 4 months ago
Original post - Mar-1-2020
This is one of the many projects I'm working with right now.
Printed using Paramount PLA - White (I only use Paramount filaments)https://www.paramount-3d.com/product-page/pla-3

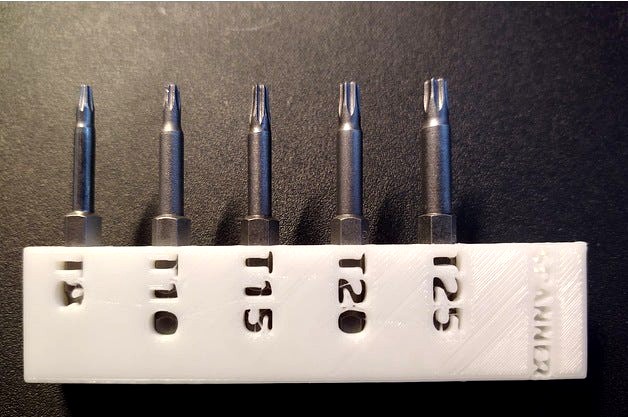

At work, I use several different Torx bits throughout the day. Getting to quickly and not losing, can be impossible some days. So I created this...
six bits - they all remain in one place
T8, T10, T15, T20, T25 along with a spanner bit. (I'm not a fan of the spanner bit. Broke 3 in one day. lol)
helps to show which bit is currently in the driver
designed to sit on the lip of a standard, metal tool box.
I have included two files.
Torque Bit Holder V12: is built to glue in Six-6X2mm magnets
Torque Bit Holder V13: is built to glue in three-12.7 (1/2") X1.59mm (1/16") magnets
Since the supplier for my original order of 6X2mm magnets appeared to no longer sell the same item. I used this as an opportunity to increase and standardize the magnet size.
I bought these magnets and will adjust on how they fit:https://www.kjmagnetics.com/proddetail.asp?prod=D81-N52
Like the title says, it's a work in process. I don't wanna hear any whining. It's free dammit.
I love designing stuff.....peace
jag
