Tool length sensor for CNC Router by User0180
by Thingiverse
Last crawled date: 4 years, 7 months ago

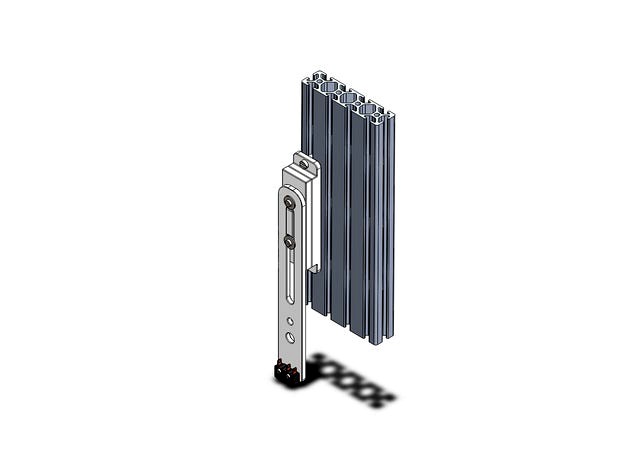

This is a printable tool length sensor e.g for cnc router.
All parts are FDM printed.
The micro switch is a Hartmann MBB1.
Constructed for T-Nut profil.Needed materials:
printed parts
1x Hartmann MBB1 or equivalent
2x Neodym magnet - Ø8mm x 3mm
2x Screw ISO 1207 - M3x10
2x Washer DIN 9021 - 3,7
2x Nut ISO 4032 - M3
2x Screw ISO 1207 - M2x12
2x Nut ISO 4032 - M2
All parts are FDM printed.
The micro switch is a Hartmann MBB1.
Constructed for T-Nut profil.Needed materials:
printed parts
1x Hartmann MBB1 or equivalent
2x Neodym magnet - Ø8mm x 3mm
2x Screw ISO 1207 - M3x10
2x Washer DIN 9021 - 3,7
2x Nut ISO 4032 - M3
2x Screw ISO 1207 - M2x12
2x Nut ISO 4032 - M2
