TonUINO front plate for IKEA Vildapel

Last crawled date: 5 years, 7 months ago

TonUINO is a project for creating a speaker not only for children. It can be compared with a Toniebox for example.
https://www.voss.earth/tonuino/
It uses a RFID-Reader, a MP3-Modul, a speaker and an Arduino Nano to create a very easy to use loudspeaker for children.
The community for this project can be found here: http://discourse.voss.earth/
My thing is based on the idea of goofy (http://discourse.voss.earth/t/gehaeuse-ikea-vildapel-in-der-ca-edition/2589)

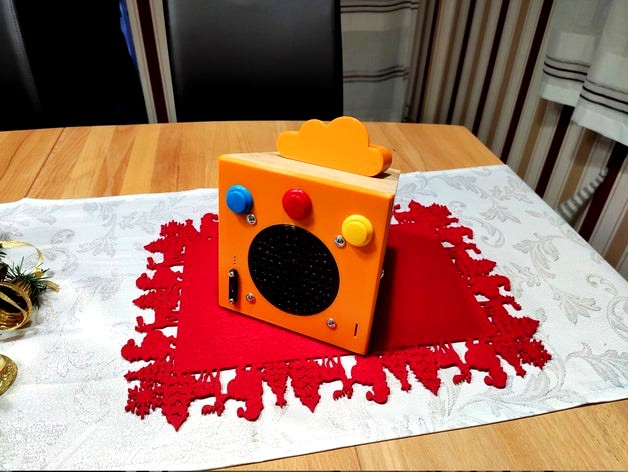

With my frontplate it is possible to install the complete tonuino stuff on the frontplate itself you only need some connections to the powerbank and switch.
I added two versions of the frontplate - one with a easy removable SD-card and one which can only be removed with a special tool (child proctection :)).
Thread for this design can be found here: http://discourse.voss.earth/t/weiterer-tonuino-frontplatte-ikea-vildapel-im-3d-druck
I added the construction files in the Autodesk Inventor format.
Part list:
Main switch - MUSCCCM 8 LED-Switch, DC 12 V 20 A: https://www.amazon.de/gp/product/B076KLB9VV
USB-Input: https://www.amazon.de/gp/product/B0754MNQPN
RFID-Cards - 10 x RFID Keycard Card 13,56MHz MF S50: https://www.amazon.de/gp/product/B07DQM2M2C
Switches - EG STARTS 12x 24mm OEM Arcade: https://www.amazon.de/gp/product/B075DCB7LT
MP3-Modul - DFplayer mini: https://www.amazon.de/gp/product/B07CRY9QTK
RFID-Reader: AZDelivery RFID Kit RC522: https://www.amazon.de/gp/product/B01M28JAAZ
Speaker - Visaton FR 10 HM 20 W: https://www.amazon.de/gp/product/B003A63NLE
Housing: IKEA Vildapel: https://www.ikea.com/de/de/p/vildapel-uebertopf-bambus-90233613/
