Toggle Switch Mounting Plate by dsmith1960

Last crawled date: 4 years, 8 months ago

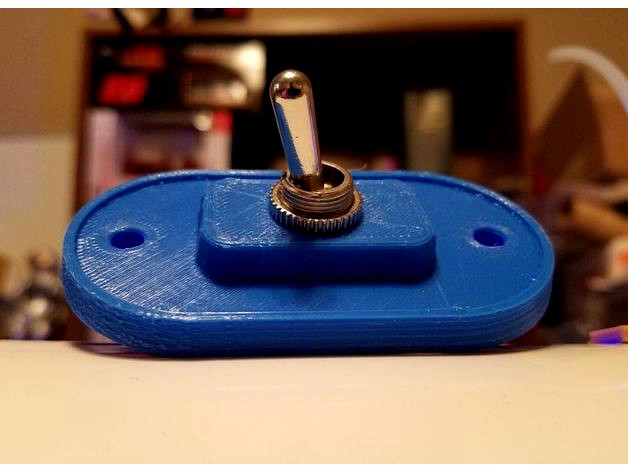

This toggle switch mounting plate holds a switch with a .500" mounting hole and rectangular base (SPST and SPDT). The opening in the bottom keeps the switch from rotating while tightening the mounting nut. Holes for mounting are sized for a #8 machine screw.
Creo 2.0 file (.prt) attached for editing purposes.
Used for RV, boat, airplane, automobile, electronics, where ever you might need a toggle switch.
