TM-Flex R Z Stop Adapters for Resin Machines by tinymachines3d

Last crawled date: 4 years, 11 months ago

Some are reposted, redrawn or remixed. We just wanted to put them all in one place and credit the origin.
Our TM-Flex R system is 2mm thick. If the build plate cannot be adjusted this much, it will be necessary to adjust the Z end stop trigger point. This can be done with a printable spacer or adapter. Use your resin machine before switching build plates or an FDM machine.

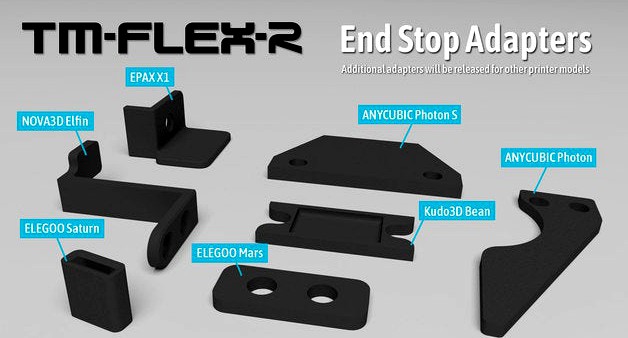

All adapters are designed to change the Z0 position to adjust for the added 2mm of the TM-Flex R system.
Be sure to relevel your bed after everything is back together.
~Anycubic Photon
Remixed from https://www.thingiverse.com/thing:4567231
~Anycubic Photon S
Remixed from https://www.thingiverse.com/thing:4594216
~Elegoo Mars/ Mars Pro:
Remixed from https://www.thingiverse.com/thing:4533310
~Elegoo Saturn
Redrawn with dimensions from https://www.thingiverse.com/thing:4565841
~Epax X1:
Reposted from https://www.thingiverse.com/thing:4565824
~Kudo Bean:
Remixed from https://www.thingiverse.com/thing:4567790
~Nova3D Elfin
Reposted from https://www.thingiverse.com/thing:4556656
~Phrozen Transform
Custom TM3D. We noticed that even with the stock setup, there wasn't much adjustment so we added an extra 1mm to this adapter.
