Tiny Switch Holder for 16mm AV holes by jymcheong
by Thingiverse
Last crawled date: 4 years, 5 months ago
This holder is designed for 5.2x5.2x3.5mm tactile push button switches (https://www.aliexpress.com/item/20pcs-lot-5-2-5-2-3-5mm-4-PIN-SMT-G67-Metal-Tactile-Push-Button/32670579596.html?shortkey=FV7vQfEj&addresstype=600).

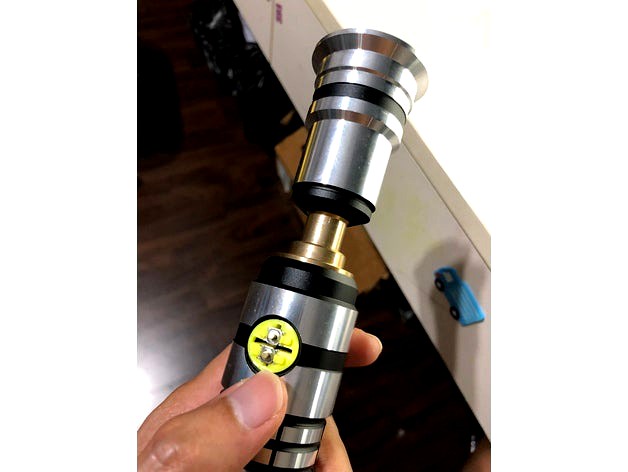

This is useful for light-saber hilts that have only one switch hole (16mm) & the sound-board uses main & aux switches (eg. Naigon).
Instead of soldering to the tiny SMT switch legs, you should consider conductive ink like this: https://www.aliexpress.com/item/0-2ml-high-concentration-of-silver-conductive-silver-paint-pen-silver-paste-was-cured-naturally/32615535233.html?shortkey=eE3umQja&addresstype=600
This is useful for light-saber hilts that have only one switch hole (16mm) & the sound-board uses main & aux switches (eg. Naigon).
Instead of soldering to the tiny SMT switch legs, you should consider conductive ink like this: https://www.aliexpress.com/item/0-2ml-high-concentration-of-silver-conductive-silver-paint-pen-silver-paste-was-cured-naturally/32615535233.html?shortkey=eE3umQja&addresstype=600
