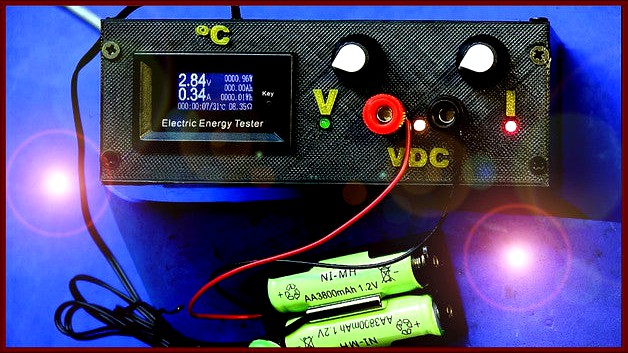

Tiny battery charger, adjustable 5A by J_RPM

Last crawled date: 4 years, 7 months ago

Construction of a small battery charger, adjustable in voltage and current, taking advantage of a recycled power supply. The adjustment and load control module is based on the XL4015 integrated circuit (Step-Down Converter), which allows to operate with maximum values of 36V and 5A. I have assembled the set in a custom made box, made with the 3D printer in PLA.
