Threading die guide by Deemoss
by Thingiverse
Last crawled date: 4 years, 8 months ago

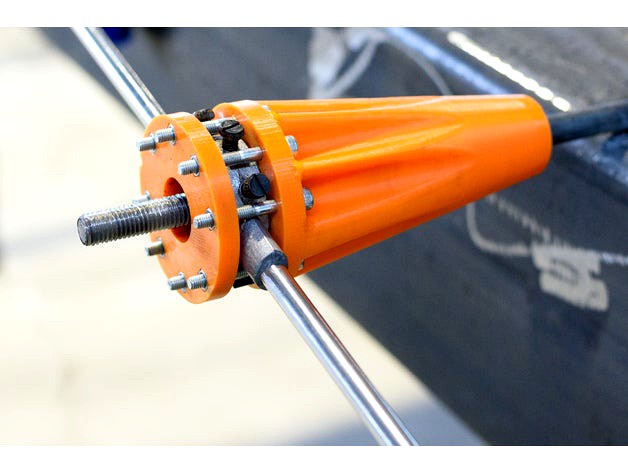

If you ever attempted to make an outside thread using a threading die, you know what a challenging task it can be. Starting the thread and keeping it coaxial can be very tricky. To help with alignment, I designed a tool that keeps the die holder perpendicular to the stock axis while threading. It makes starting the thread and keeping it aligned a breeze. STEP files provided so you can customise it to your die holder, especially the Custom* files.
See it in action https://youtu.be/n-P1q3uZm1E
Features
It accepts threading die holders up to 38mm OD (1-1/2").
Max stock size 20mm
Replaceable bushings to match your stock size (green part in the illustration)
Replaceable adapters to match your die stock holder (orange part in the illustration)
Lubrication port
Hardware
M5 40mm socket head screws (x8)
M5 hex nuts (x8)
See it in action https://youtu.be/n-P1q3uZm1E
Features
It accepts threading die holders up to 38mm OD (1-1/2").
Max stock size 20mm
Replaceable bushings to match your stock size (green part in the illustration)
Replaceable adapters to match your die stock holder (orange part in the illustration)
Lubrication port
Hardware
M5 40mm socket head screws (x8)
M5 hex nuts (x8)
