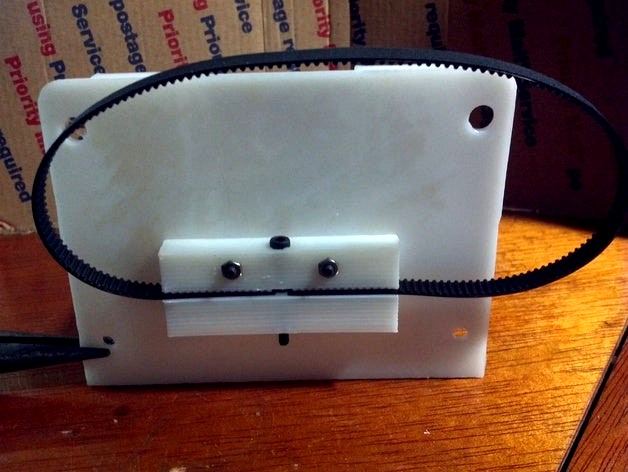

The "Crushinator" GT2 (or other) parameterized belt clamp for Ord Hadron by rnendel

Last crawled date: 4 years, 7 months ago

Tired of the wimpy belt clamps on your hadron? Well, this is a beefy, sturdy, and parameterized solution. This clamp will not fail! I run at 200mm/sec which requires some very tight variances on the ord (run motors with fans, all eccentric spacers at full tension, lots of tension on the belts, etc...). This clamp is designed to accommodate such use.
Version 2 added, now with wings. The little wings serve as a guide for centering the belt on the teeth.
Designed specifically to go with version 5 of this: http://www.thingiverse.com/thing:170086
The clamp can be modified to fit any hole pattern, the default is just my preference (12 teeth per side, with a wide distance between the mounting holes for stability).
Additionally, the clamp can be customized for any belt by changing the tooth-pitch, etc...
