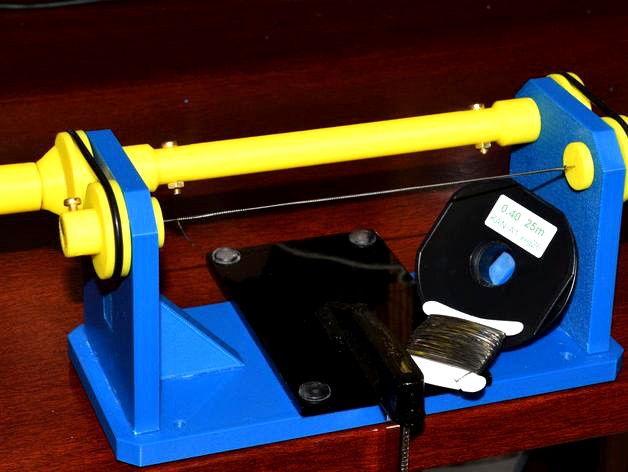

With this completely manual tool u can built your preferred coil.
With this u can do:
a twister coil (with 2 or more wire);
a classic clapton coil;
a juggernaut coil.
About the print STL named with _x2 final u have to print double.
To mount u need:
2x M3x15 (with nuts) for crankshaft;
2x M3x10 for wire fixing;
1x M3x15 for knob mounting;
2 oring 1,50>3.00 x 52 mm for the rollers (u can use some elastic too).
It's easy to print and mount. I suggest to fix it in a plane using the 4 hole or a clamp.
https://www.youtube.com/watch?v=ENey72MzuXU
I added i shot where u can see how print the "round" object.
Update 07/06/2016
reupload all the part with major resolution (how requested from someone);
released.
