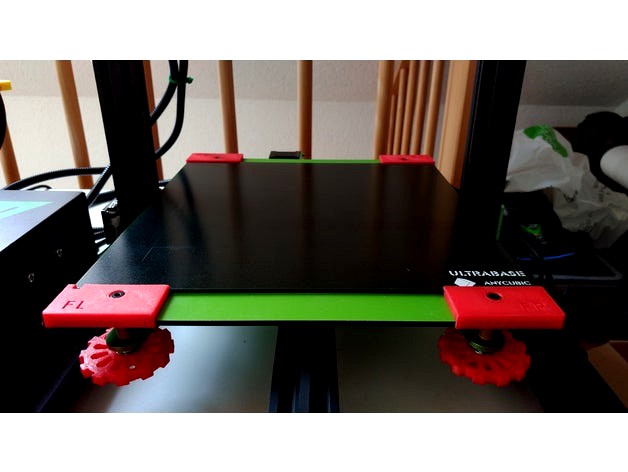

TEVO Tornado Ultrabase Upgrade by SimonFrick

Last crawled date: 4 years, 12 months ago

Ultrabase 310x310x4:https://www.aliexpress.com/item/ANYCUBIC-Ultrabase-3D-Printer-Platform-Heated-Bed-Build-Surface-Glass-plate-310x310x4mm-for-MK2-MK3-Hot/32843762938.html?spm=a2g0s.9042311.0.0.EVv07O
Maximale Druckfläche sowie Bauhöhe
Gedruckt in PLA, da in den Ecken keine hohen Temperaturen sind,
sonst würde sich PETG empfehlen!
Bezeichnungen wie:
FL -> Front Left
FR -> Front Right
RR -> Rear Right
RL -> Rear Left
habe ich wegen des optischen und den Custom Commands gemacht ;-)
Hier der von mir verbaute Dual Fan Blower:https://www.thingiverse.com/thing:2752376
Mit Blechlineal (0,5mm) unten (vorletztes Bild) ergibt dies oben 1,5mm Abstand vom Aluschlitten (letztes Bild)!!!
https://www.youtube.com/watch?v=kVIysxlXPJM
Maximum print area and height
Printed in PLA because there are no high temperatures in the corners,
otherwise I would recommend PETG!
Terms like:
FL -> Front Left
FR -> Front Right
RR -> Rear Right
RL -> Rear Left
I did because of the optical design and the custom commands ;-)
Here is the Dual Fan Blower installed by me:https://www.thingiverse.com/thing:2752376
With sheet metal ruler (0.5mm) below (penultimate picture) this gives up 1.5mm distance from the aluminum slide (last picture) !!!
https://www.youtube.com/watch?v=kVIysxlXPJM
My Start Script:
G21 ;metric values
G90 ;absolute positioning
G28 X0 Y0 ;move X/Y to min endstops
G28 Z0 ;move Z to min endstops
G1 Z50.0 F2000 ;move the platform down 50mm
G92 E0 ;zero the extruded length
G1 F200 E20 ;extrude 20mm of feed stock
G92 E0 ;zero the extruded length again
G4 S5 ;wait 5 seconds
G1 Y20 F2000 ;+20mm because of the front left screw
