Tevo Tarantula Bowden Seal
(any typical 4mm bowden and 1.75mm filament)

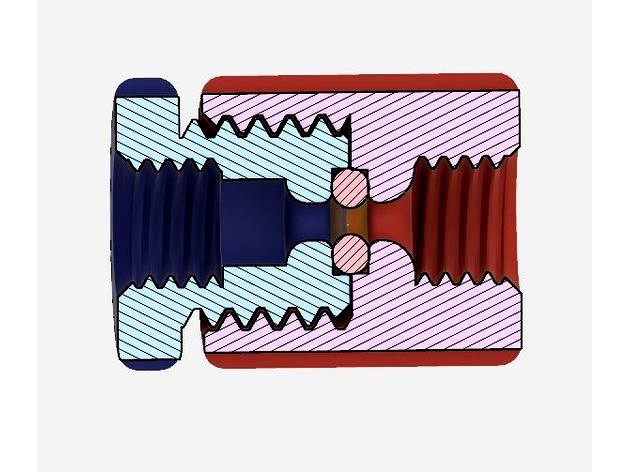

This is a coupler that will hold an oring to seal the filament in the bowden, and a PC4-M6 on each end.
The oring is a 1.5mm id x 1.8mm thick and can be found on ebay as a common rc helicopter part. They run ~$5 for 10.
Search " Lynx Blade 180 CFX 10pc Silicone O-Ring Set ID 1.5mm ID 1.8mm W LX1506 ".
There are two versions.
V1 is simpler, but might not work with all pc4-m6 fittings.
V2 has more parts, but should work with any pc4-m6.
I'm still goofing around with it to see if this will even do anything, but so far it looks promising.
