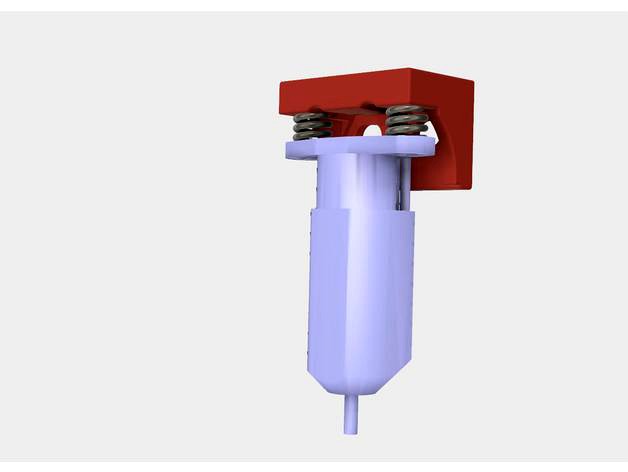

TEVO Black Widow BLTouch tiny mount by SimonSolar2C
by Thingiverse
Last crawled date: 4 years, 7 months ago
** V2 Update ***
As stated below, its all about having a very stable mount to get good results from BL Touch, therefore once again the height is fixed position ( or adjust height with springs supplied by BLT)
I put the springs below to allow for some collisions to have less chance to break the BLT
* Changes in V2: **
Moved it up 2.4 mm so some adjustment available, and more clearance when retracted.
Widened the mount holes so you can use the inner position: get closer to the nozzle=larger probing area
Previous notes
Probably the smallest BLTouch mount available, and also the stiffest !
I found all the other mounts resulted in a fairly low SD value, i.e. were inaccurate, especially with any fans running.
This small mount is placed on the backplate, doesnt allow any adjustment or movement. On mine the screws are hard up onto the springs.
I have good first layers with a bent uneven bed, and can almost print remotely.
As stated below, its all about having a very stable mount to get good results from BL Touch, therefore once again the height is fixed position ( or adjust height with springs supplied by BLT)
