TechLighting 'K-BYE-BYE' Head (Part #700KBYENC)

Last crawled date: 3 years ago

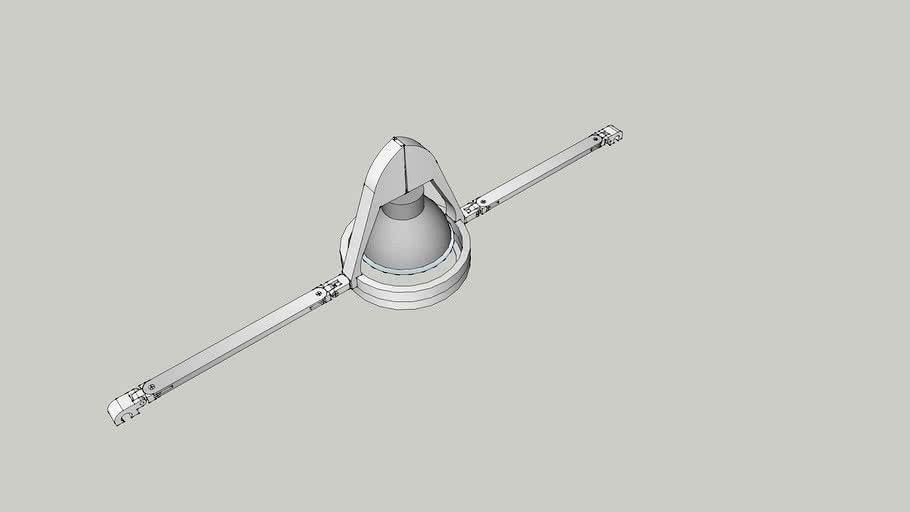

TechLighting 'K-BYE-BYE' Head for the 'Kable Lite' System (Part# 700KBYENC) on www.techlighting.com. I modelled this off of an actual unit with attention to detail to proper dimensions (tested with a digital caliper). I've installed these in my house, so I modelled them for the design process. These can be installed with several options as to cable spread... as you see in the model, the arms are fully extended to use with a 12' cable spread. I nested groups in the model along the arms so that you can easily articulate the arms at all 4 screws. (Just keep drilling down till you get to the group you wish to rotate, plus since the right arm is a clone of the left, rotate one and it acts on both). I used the MR16 from tknelms, but I removed the GU-12 adapter and reverted the model (so to speak) to a standard MR16 bulb. I renamed the various articulation point groups so they are easier to find (you can know when you hit em while using 'Edit Group' to drill down the arms to the 4 articulation points. Just apply a rotate to the face of any screw head and you will be able to adjust the spread and hang of these heads.) #700KBYENC #KBYEBYE #Kable_Lite #Kable_Lite_System #MR16 #Tech_Lighting #TechLighting
