Synchronized Inverted Vertical Motors for CR-10 (S) with adjustable stabilizer for Z axis CR-10S. 100% printable including threaded rod by Guizboy
by Thingiverse
Last crawled date: 4 years ago
MAJ 07/10/2018: Added a wire feed that snaps onto the threaded rod to prevent unwinding of new reels.
MAJ 06/05/2018: Addition to the stepper support of the adjustable stabilizer of the Z axis
MAJ 03/29/2018: error on the belt tensioner stl

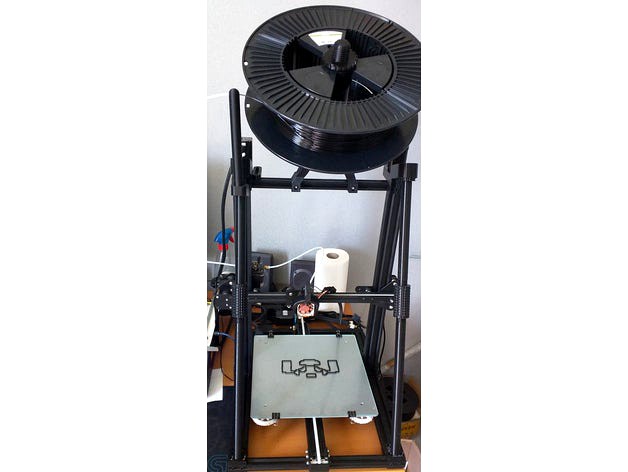

Reverse(?! suggestion welcome :) ) Vertical mounting system for CR-10 (S) motors with steppers synchronization option and Z adjustable stabilizer.
the size of the step of the printable threaded rod is M22x200. Or 2mm per revolution for an outside diameter of 22mm.
This set makes it possible to adjust the geometry of the Z axis by adjusting the length of the threaded rod. To do this, it is necessary to act on the adjusting ring and lock the position with the counter nuts
Allows the use of powerful stepper (photo: NEMA17x60mm)
Stepper synchronization dispenses repeated heating bed settings
Attention : You will have to reverse the direction of the Z axis stepper in the configuration_h (line 753 for Marlin 1.1.8) section of your firmware !
Material :
8x M4x10mm screw
8x M4 T Nuts
8x M3x10mm screw (stepper motors)
8x M3x12mm screw (lower base)
8x M3 T Nuts
2x radial bearing 12x21x5mm Ex : https://www.ebay.fr/itm/108-125-12x21x5-Radial-Bearing/282719308151?hash=item41d3624977:g:ae0AAOSw7ehXRDTr
Synchro Option :
2x GT2 16x8mm pulley ex : https://protype3d.fr/225-poulie-gt2-diametre-interieur-8-mm.html
1x GT2 free puley ex : https://protype3d.fr/525-poulie-gt2-folle-16-dents.html
1x GT2 760x6mm belt
1x M3x20mm screw (belt tensioner)
1x M3 Nut (belt tensioner)
1x M3 flat washer (belt tensioner)
