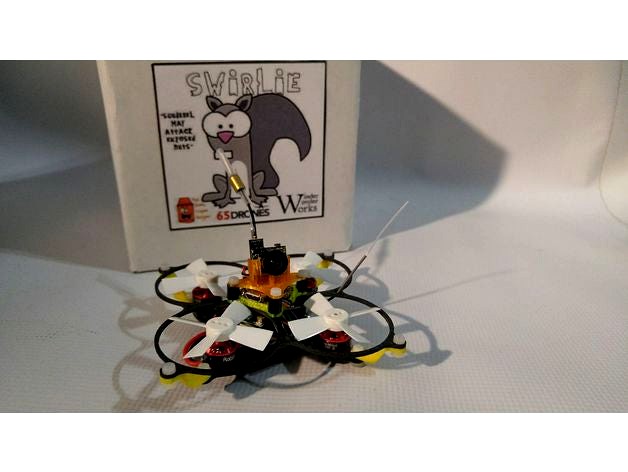

Swirlie - 64mm pico-sized Brushless Quad by TheShortCrayon

Last crawled date: 4 years, 7 months ago

With constant effort to push the boundary of how small a brushless setup can get, the Swirlie was born.
Designed to be a small, simple setup, the Swirlie looks sweet and performs indoors and out.
It's 64mm sized (same as Inductrix), brushless, full removable prop guard, and tough.
-Flight Controller
Emax Femto (also compatible with other 20x20mm and 16x16mm hole spacing FCs)
-Motors
1102 or 1103 motors 8000kv-10,000kv. 10,000k recommended
-Props
40mm Props
QX70 (drilled out to 1.40mm)
Rakon Tri-blade (drilled out to 1.40mm)
RotorX or FuriousFPV cut to 40mm
-ESC
20x20mm hole spacing 4in1 6A-10A
-Receiver
Your favorite micro rx
-Camera/VTX
VM275T or your favorite micro AIO vtx
-Battery
300mah-450mah 2s-3s
65Drones65Drones Amazon Store
https://youtu.be/ISaX-dcM-l0
3/4/2017
Fixed the orientation of the strut for easier printing
3/17/2017
Added M3x2 spacers to go between the FC and prop guard
3/18/2017
Added a TX01/02 Style Camera Mount
4/4/2017
Added the v6 ESC spacer. It's 4mm vs 2.5mm height on the v5. This is accommodate the 12A escs that are out now.
4/16/2017
Added an alternative nylon prop guard.
