supermicro 3,5" hdd drive caddy tray (Non-Screw and Screw version!)

Last crawled date: 5 years, 3 months ago

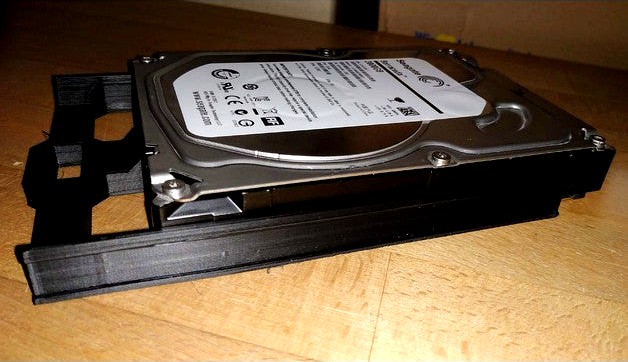

For the famous (and nowaday super cheap second hand) Supermicro CSE-815 1U server chassis, I designed a harddisk caddy (hard drive tray) for 3,5 SATA/SAS HDDs.
I liked the idea of https://www.thingiverse.com/thing:2413043 , but build these on my own, by using an original HDD MCP-220-00001 drive tray and made it to be printed out fast and (nearly) without supports.
There are two versions available:
One without the need of the special supermicro hdd screws ( MCP-410-00006-0N ). You can just clip it on your harddrive and be good to go.
And one where you can securely fix the hard drive tray to your HDD.
This print should be an exchange for following supermicro hdd caddies:
MCP-220-00001-01
MCP-220-00024-0B
MCP-220-00075-0B
01-SC93301-XX00C104
Which means, this caddy should be compatible with following supermicro 1U server chassis:
CSE-813MFTQ
CSE-813MFTQC
CSE-813MTQ
CSE-813LT
CSE-815T
CSE-815TQ
CSE-819TQ
CSE-825TQ
CSE-826A
CSE-826BA
CSE-836BA
CSE-826BE1C
CSE-826BE26
CSE-826BE16
CSE-826E16
CSE-826E1
CSE-826BE16
CSE-826BE1C
CSE-826E2
CSE-826E2
CSE-826E26
CSE-828TQ
CSE-836BHE16
CSE-836BE16
CSE-842XTQ
CSE-846E1
CSE-846E1
CSE-847A
CSE-847E1C
CSE-848A
CSE-848E16
