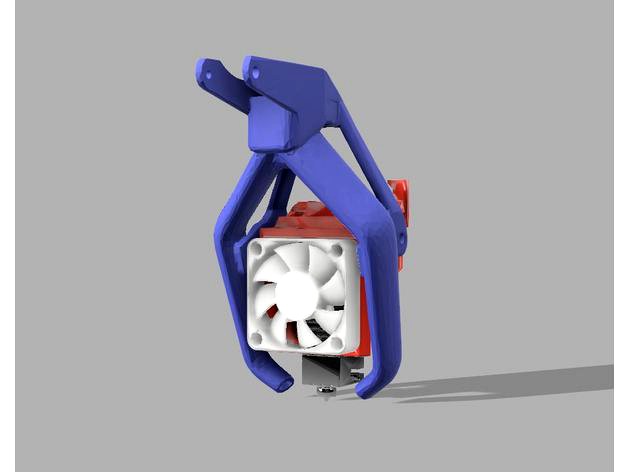

This is the " Stupid Tall and Strong Fang" made for the cr10 to be used with 5015 part fan and 40mm cooling fan.
The idea behind this is i wanted a Really rigid, strong and stable Fang to be used with a Noctua 40mm fan, and that at the same time would allow great visibility of the nozzle
This is a remix from the from the " cr-10 fang fan mod " from chris bibby on Myminifactory adapted to the "CR-10 Heavy Duty customisable modular e3D V6 mount "
The fang can be printed like a regular fang, with or without supports as you prefer, but i printed with no supports and came out perfect.
The X carriage Mount needs to be printed as it is oriented, and it DOES need supports!
The best materials would be ABS or petg, but i guess pla could hold just fine.
For the Hardware you will need:
To mount the x carriage Mount to the x carriage: 2x M3 6mm
To lock the e3d in place: 2x M3 30mm + 2 M3 Nuts
To attach the fang: 2x M3 10mm
To connect the 5015fan to the fang: 1x M3 20mm
To attach the 40mm fan to the duct: 4x M3 20mm ( you could use only 2)
For more informations about the "heavy duty modular mount" here is the link to the page with detailed instructions: https://www.thingiverse.com/thing:2494642
Link for the Fang Mod from Chris Bibby on Myminifactory: https://www.myminifactory.com/object/cr-10-fang-fan-mod-53825
Hope you will like it and that this will satisfy your crave for a decent fang for your creality and e3d v6 ( clone or not :P )
Good prints!
