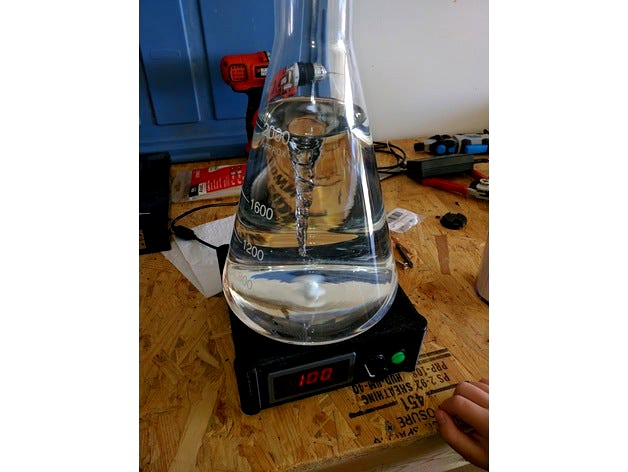

My printer was hating the source design, decided to try my hand at one mine can handle.
https://tinkercad.com/things/6u5DwEen5iUhttps://tinkercad.com/things/6cJCLkIRHZihttps://tinkercad.com/things/aYzolQJ91JE
Fan: http://amzn.to/2lh3OMe
PWM Controller: http://amzn.to/2lh4HVc
Power Supply:http://amzn.to/2lh3Zam
Power Supply Jack: http://www.ebay.com/itm/271757190320
Stir Bar: http://amzn.to/2kGlN2f
Picked up some 0.5" neodymium magnets from Michael's. I glued top onto base with ca gel. Then CA glued the magnets into holder, and holder onto fan. It held with just magnet force, but I was afraid it would throw or wobble off over time so I glued it down. For final touch I glued some rubber pads onto the feet. I also ca glued the display into the base, the tabs on the sides are not the most robust mounts out there.
It could be prettier, but black pla is what I had enough of left.
The hardware In case the hardware links go dead:
5.5mm X 2.5mm DC Power Supply Jack Guitar Pedal Panel mounting
6V 12V 24V Digital Display LED DC Motor Speed Controller PWM Stepless Speed Control Switch
ARCTIC F8 PWM Rev. 2 Fluid Dynamic Bearing Case Fan, 80mm PWM Speed Control, 31CFM at 22.5dBA
12V AC Power Adapter For Maxtor OneTouch II III HDD,3100 Personal Storage
