Steyr Aug Body Pin by ThatScrub
by Thingiverse
Last crawled date: 4 years, 12 months ago

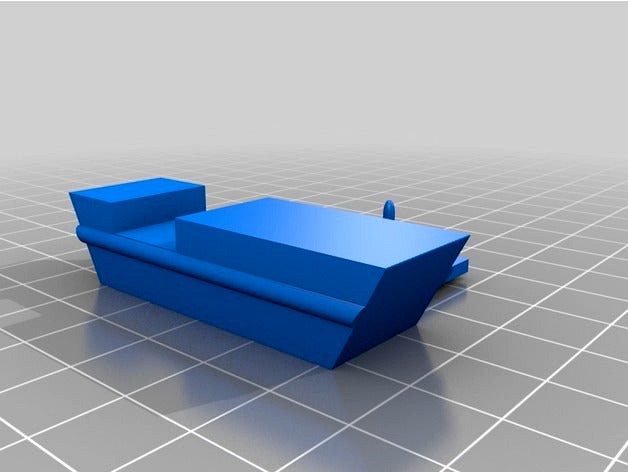

Replacement receiver/body pin for Steyr Aug
You will need:
2x screws approx. 4mm long, 3mm diameter (countersunk head)
1x spring approx. 3.8mm outer diameter, 7mm long
Notes:
The screw holes are slightly undersized so that you can use screws to tap a thread, go and remember to back them out a half turn every now and then on first assembly
I've broken the model down into the 3 parts so you can rotate them easier in your slicing software :)
I haven't printed this out so it may not fit right off the bat as my models tend to be a 'close' fit, all measurements were taken accurately from an original part!
Any issues just shout ;)
