Stepcraft ATC with Dust Extractor by Broome
by Thingiverse
Last crawled date: 4 years, 7 months ago
Only for Stepcraft machines!

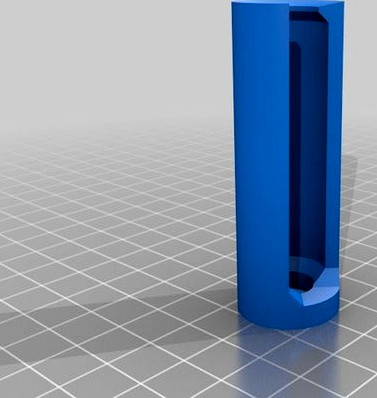

Tool holder for the HF-500 with the automatic tool changer (ATC) and dust extractor. I also included the M6 macro for the tool changer. USE IT AT YOUR OWN RISK! I mounted the holder toward the front of the machine to get maximal surface for cutting, but feel free to rewrite it if needed.
I mounted ten tool holders on a bar (included) on my Stepcraft 840 with T-slot table + 8 mm MDF spoil board (included). The bar and holes are specific for this machine but it would be an easy fix to customize it to the smaller machines, or make your own.
I printed the tool holders with Colorfabb nGen Flex and strongly recommend that you use something similar so the holder can flex and not break during setup.
https://youtu.be/_yovEpf6W04
