Steam Boat Paddle Wheeler - 5/28/18

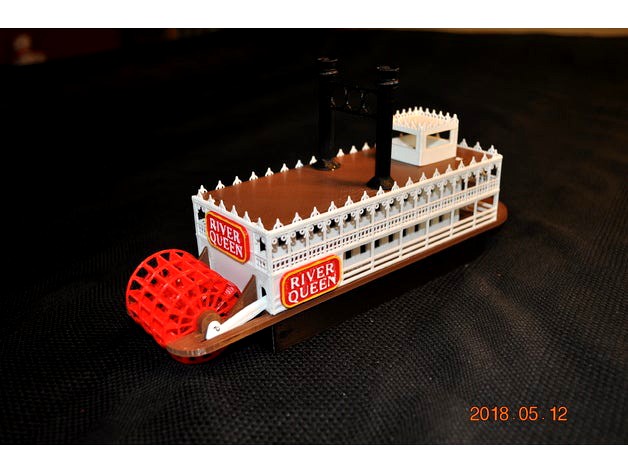

This is an old fashioned steam boat paddle wheeler.
This was designed using BlocksCad and the files are provided here.https://www.blockscad3d.com/community/projects/170546
the decks and cabins have alignment features to help align the them perfectly.
PRINTING:
The following are the prints and colors I used:
river_queen (68) spokes.stl (red)
river_queen (68) spokes paddles.stl (red)
--- print three of the above
river_queen (62) river queen sign r1.stl (red)
--- print three of the above
river_queen (72) 1st deck.stl (brown)
--- this is largest piece at 238.50 mm.
--- if i get a chance,i will split this into two smaller pieces
river_queen (46) 2nd deck.stl (brown)
river_queen (47) 3rd deck.stl (brown)
river_queen (43) 1st cabin.stl (white)
river_queen (43) 2nd cabin.stl (white)
river_queen (43) pilot base.stl (white)
river_queen (43) pilot roof.stl (white)
river_queen (45) panel back.stl (white)
river_queen (45) panel front.stl (white)
river_queen (45) panel left.stl (white)
river_queen (45) panel right.stl (white)
river_queen (72) left link r1.stl (white)
river_queen (72) right link r1 (mirrored).stl (white) (5/28/18 update)
river_queen (54) stack aft half.stl (black) (5/14/18 UPDATE, forgot to show here)
river_queen (54) stack fwd half.stl (black) (5/14/18 UPDATE, forgot to show here)
river_queen (49) hull.stl (black) (5/18/18 UPDATE, forgot to show here)
INSTRUCTIONS:
See file: Steam_Boat_Paddle_Wheeler_Assembly_180518.pdf
updated 5/18/2018 to show assembly of hull to deck assembly
UPDATE:
5/28/2018 update now has the correct right link
