Spiral Layout for OpenSCAD by PuZZleDucK
by Thingiverse
Last crawled date: 4 years, 7 months ago
When I found out the MCAD OpenSCAD library had a layout file I was soooo excited... I had just found out about the grid layout (handy for sure) and was excited to see what other wonders lay in layout.scad.

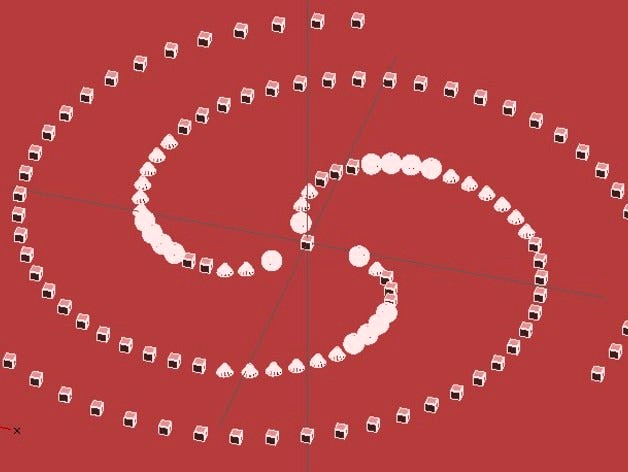

With baited breath I opend the source file... to find... Linear layout. Thats it... line and grid. So I thought I'd spice things up a bit with this spiral layout inspired by the Fibonacci spiral. You can specify the tightness of the spiral (as shown in demos) and the relative spacing of the items being layed out.
The demo .stl is not realy for printing... scale it down at least for plastics sake.
Hope you enjoy using it half as much as I enjoyed making it. :D
Super-Awesome-Happy-Time Demo Video now avaliable: http://youtu.be/ti1k5np3VnA
