Sparkcube customized for the new E3D-V6 by Skimmy
by Thingiverse
Last crawled date: 4 years, 7 months ago
update 09-2015: added an xcarriage with a 1mm wider bore "xcarriage_31mm-bore.STL" because of people complaining it would not fit. Let me know, if it needs to be more bigger.
-- REWORKED! NOW FUNCTIONAL! --

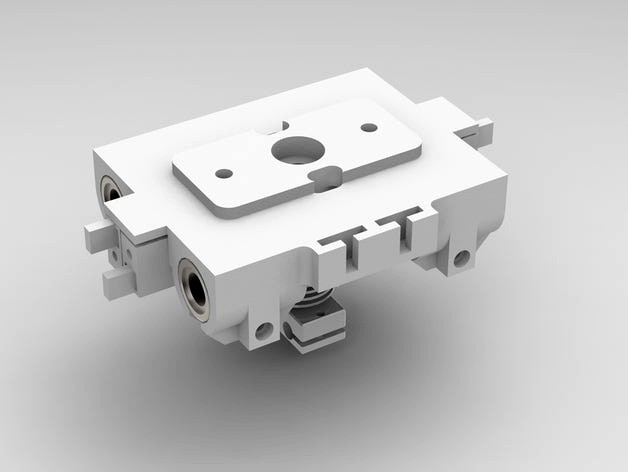

The V6 is much smaller and fits way better then his bigger predecessors, but I still had to modify the X-Carrier 12mm longer to get a good fit right underneath for minimal Z-Axis loss.
Also modeled a adapter for mounting the E3D-V6. The Hotend can now simply be pulled upwards, out of the carrier, just by unscrewing two screws.
And new in the reworked Version: Mount for a fanduct for PLA-Cooling.
-- REWORKED! NOW FUNCTIONAL! --
The V6 is much smaller and fits way better then his bigger predecessors, but I still had to modify the X-Carrier 12mm longer to get a good fit right underneath for minimal Z-Axis loss.
Also modeled a adapter for mounting the E3D-V6. The Hotend can now simply be pulled upwards, out of the carrier, just by unscrewing two screws.
And new in the reworked Version: Mount for a fanduct for PLA-Cooling.
