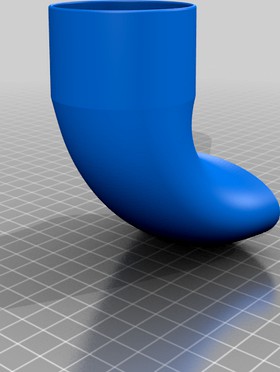

Spacepak High Velocity Diffuser - 90 degree by mikep2018

Last crawled date: 5 years ago

Spacepak High Velocity system was blowing too hard down on my desk, shuffling papers. This turns the airflow away. It is also not interfering with the curtain rod, thanks to the oval shape at the exit port.
The pictures are from the first draft print. Need to experiment with supports and raft for smoother surfaces.
Designed in Onshape®.
