Sony Walkman TPS-L2/WM-3 Replacement Battery Cover Catch by sjm4306

Sony Walkman TPS-L2/WM-3 Replacement Battery Cover Catch by sjm4306

by Thingiverse
Last crawled date: 4 years, 1 month ago

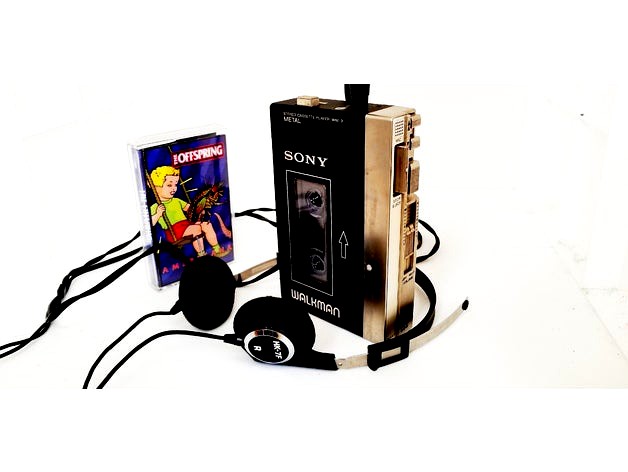

I recently scored a broken WM-3 for a good deal and after replacing the belts, calibrating the speed, and resoldering the mic I was still missing the battery catch. I looked online and it seems no-one has any replacement or 3d printable parts for this available. Luckily the spring was still attached so I modeled a simple plastic catch that fits where the original did that can be inserted through the spring, glued to a small washer to permanently affix it, and finally tensioned with a piece of thin plastic with a slit cut into it. Not as finely detailed or slim as the original but keeps my battery door shut tight so I'm happy. Will also work for the TPS-L2. Video of the electrical and mechanical repair can be found here: https://www.youtube.com/watch?v=0n4CtD_Cn_0
Keep on rocking!
