Solid Endstop Holder for 2020 Kossel Delta Mini by thatsmein3d
by Thingiverse
Last crawled date: 4 years ago

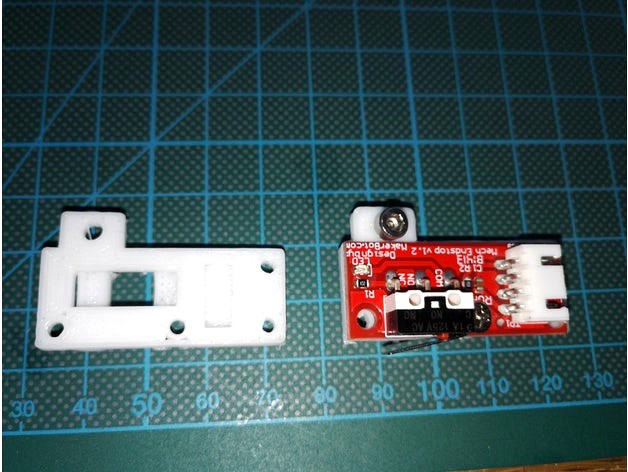

Best endstop holder ever? There are many endstops holders out there. With this design, I tried to position the switch at the middle of the 2020 aluminium profile.
Fixing the switch to the holder: I want to provide a solid m3 nut fix and three optional holes to further stabilize it, if necessary.
Fixing the holder to the profile: Since the holder is fixed to the profile by a single m3 screw and T-nut this holder grabs into the 2020 profile, so it should be pretty stable.
This solution should go well with sintron delta kossel mini or He3D DLT-180 standard parts:http://www.thingiverse.com/thing:566093
It is part of my attempt to enhance the carriage part of these delta printers with an adjustable screw that hits the centered endstop perfectly: http://www.thingiverse.com/thing:2236000
