Softrock Ensemble RXTX Case by djones60
by Thingiverse
Last crawled date: 4 years, 11 months ago

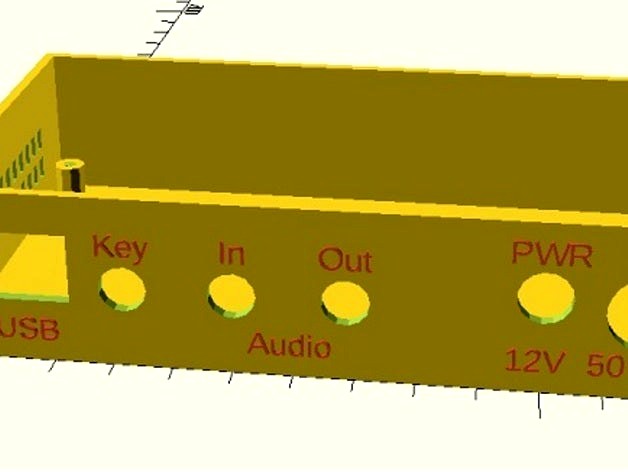

This is a case for the Softrock Ensemble RXTX SDR radio that I created. It will also work with the original Peaberry V1,V2, and Omni-SDR SDR radio. The case has built in labels for the ports, vent holes and stand offs for the PCB. The stand offs are sized to use 4-40 screws and will need to be at least tapped and possibly drilled first ( depending on your printer ). The stand offs have a hole all the way through to the bottom so a longer screw and nut can be used instead of tapping. The hole would just need to be drilled out for the needed extra clearance.
There are ears on the corners of the case. Those were added since my printer had a problem with the print lifting off the bed. These are .5mm and easily trimmed off.
Currently this case works on my printer and radios. As feedback comes in, I will make adjustments and improvements to the design.
