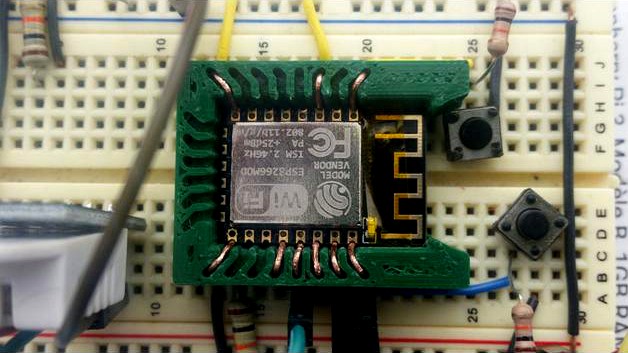

Socket ESP8266 (ESP12E)
It's a modification since I did not find the right pins.
PCB designed in kicad and modeled in freeCAD.
PCB
PCB (PDF)
PCB (Gerber)
3D Print
Socket (STL)
License
Copyright 2018, S. Fabian (fAnDREs)
Socket Model: Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License
PCB Creative Commons Attribution-ShareAlike 4.0 International License
Repository
https://gitlab.com/3d-land/models3d/-/tree/master/Electronics/Socket_E12
Attributions
Based on the work of WDWHITE
Step File by by_Andrey_Chirva
See commit details to find the authors of each Part.
