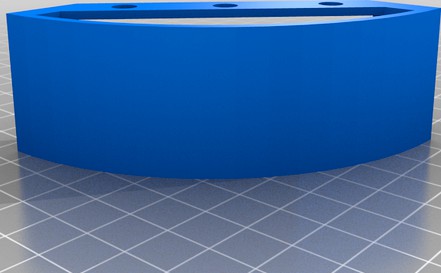

Smoke Detector Extender for Hubitat Zigbee Sensor

Last crawled date: 5 years, 9 months ago

This project is for a protector and extender for a smoke detector that will allow a custom zigbee sensor to be installed in-between the smoke detector and other connected smoke detectors so that the zigbee sensor can detect if smoke or carbon monoxide is detected.
This project is detailed here: https://community.hubitat.com/t/homemade-zigbee-environment-sensor-with-power-outage-and-hardwire-smoke-detector/30847
If you want to mix this up yourself, or customize, the files and slices are on Tinkercad:
Zigbee device protector (because mains are connected on the back of this board):https://www.tinkercad.com/things/79ota7IVpzO
v3 Extender (not as round; I have printed this one and verified it works)
Editable template: https://www.tinkercad.com/things/5eK99EcqG0u
Slices (in case you need to break it up into smaller pieces then glue it - think of it like a clock)
Slice 1-3pm - https://www.tinkercad.com/things/cOuWUULqVYU
Slice 3-6pm - https://www.tinkercad.com/things/ltMpooJEG4T
Slice 6-9pm - https://www.tinkercad.com/things/jMBUaAYjhi4
Slice 9-12pm - https://www.tinkercad.com/things/fKqyEiwHlmg
v4 Extender (more round - I have not printed or tested this one - ymmv)
Editable template: https://www.tinkercad.com/things/fKqyEiwHlmg
Slice 1-3pm: https://www.tinkercad.com/things/78SBfXEXZEr
Slice 3-6pm: https://www.tinkercad.com/things/kr7LojEbDw9
Slice 6-9pm: https://www.tinkercad.com/things/5DwjzhAddR7
Slice 9-12pm: https://www.tinkercad.com/things/hzxQzMBhuil
