SMD Component Reel / Film Reel Holder/Hub (parametric) by blatantsubtlety
by Thingiverse
Last crawled date: 4 years, 4 months ago
Hub for SMD Component / Super 8 Film reels.
Reels are varying widths so holder needs customising.

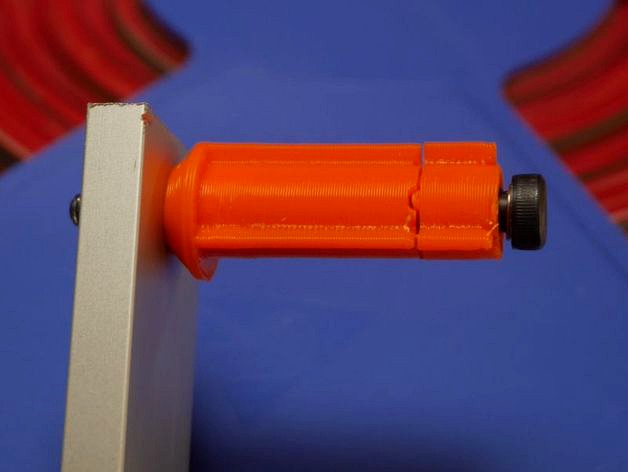

Holder is in two parts which lock the reel in place.
They fit over a bolt (eg a shoulder bolt), with a spring to lock the cap castellations into the rod.
Design is optimised for building with minimum support.
If you need one of these you might also need http://www.thingiverse.com/thing:482051
