Smart rotary parking system for 12 cars

Last crawled date: 3 years, 1 month ago

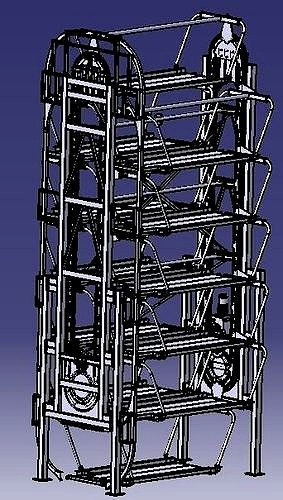

The scale of the model is 1: 1. The rotary parking model is 12L. This Unique Automated Mechanical Parking is designed to permit up to a maximum of 12 cars, on the surface area required to park 2 cars. It is made of standard profile (GOST, ISO). Specification: System dimension: Length(mm)- 6370, Width (mm)- 4850, Height (mm)- 13500 Available car: Length(mm)- 5200, Width (mm)- 2100, Height (mm)- 1600, Weight (Kgf)- 2150 Geared motor (KW)-7,5 Speed (m/min)- 3,6 ---4,2 It is quite successful when installed in busy areas which are well established and are suffering with shortage of area for parking. Designed in Solid Works 2016
