Smart Home Blind Conversion Kit by TombaDude
by Thingiverse
Last crawled date: 4 years, 11 months ago

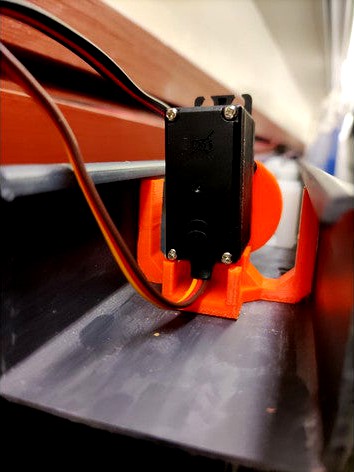

This kit transforms your old boring blinds to smart blinds. Kit is designed for "JYSK" blinds (refer to picture) but might also work with other similar designs. Additional to these parts, you need a 55g servo motor, a nodeMCU or similar, 5V powersupply and a smart home hub (for example raspberry based home assistant server).
Installation:
Remove original tilt mechanism that includes the handle and the gearbox. Lift the axle upwards to make this step easier.
Screw the servo to the 3D printed parts.
Slide the servo assembly in to the gutter so that the end of the tilt mechanism axle goes in to the round part.
Connect power and control, enjoy.
Note, this project is a bit unfinished and will include housing for nodeMCU to attach it to the assembly.
