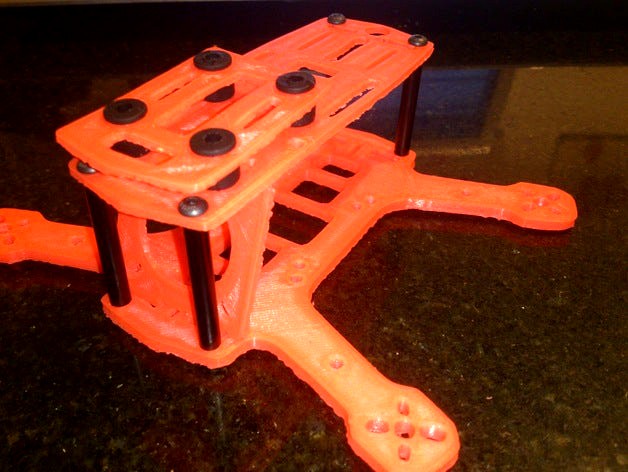

SM ZMR 150 quadcopter drone multi rotor brushless frame by WhaleFPV

Last crawled date: 4 years, 7 months ago

SM ZMR 150 Quadcopter frame ready to 3d print or buy as a kit for a fiver + p&p...
FREE p&p if you use the code "thingiverse"
More specifics, files and purchase details can be found at michaelwhalen.co.uk
Buy the m3 spacers...Banggood
Or 3d print them ... Thingiverse
Recommended Parts List

Flight Controller


F3 EVO Cleanflight Flight Controller for Multirotor Racing w/ 4G MicroSD


£19.73


ESCs


4 x Tarot TL300G5 6A 2-3S BLHeli Brushless ESC Supports OneShot For RC Multirotors


£16.00




Motors


4X Racerstar Racing Edition 1306 BR1306 3100KV 1-2S Brushless Motor CW/CCW For 150 180 200


£18.92


Propellers


2 Pairs DYS T3545 3 Inch Propeller Black Red Green Orange


£0.56


FPV Transmitter


Eachine 700TVL Cmos 110 148 Degree Camera ET200R 200mW 5.8G 40CH Transmitter (extra 35% off coupon: RC200)


£13.04 ~ 13.86


Antenna


Eachine Falcon 180 Falcon 250 5.8G LHCP Short Clover Antenna RP-SMA


£3.25


Receiver


Flysky FS-A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output


£10.60


Batteries


ZOP Power 7.4V 800MAH 2S 25C Lipo Battery JST Plug


£4.89


Power Distribution


MXKV F3/F3EVO Power Destribution Board PDB with BEC Output 5V 12V for FPV Multicopter


£5.95


Misc Parts


5 x JST Connector Plug With Connect Cable For RC BEC ESC Battery


£2.03


Total Price





£95.79

Links to the tinkercad files....
BodyTop PlateFPV CamSports Cam
UPDATES...
06/11/2016...
Reworked the body and top plates they have come out much cleaner and fit a little better :) ...
