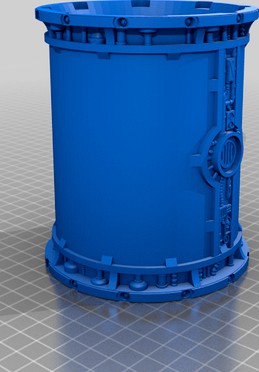

SM Tube Furnace
by Thingiverse
Last crawled date: 5 years, 9 months ago
Become a Patron!
A add on for your Sector Mechanicus. It has the same size as a Ferratonic Furnace (122mm height; 100mm diameter at base)
Update 01.01.2020
-Uploaded Strip_2 again, as it seems i didn't upload the correct one when releasing the files originally. Now it fits as intended.
Instead of a PVC Tube you could use crafting paper to make the tube yourself.
1.Make a Paperstrip of 94mm by 290mm.
2.Make a mark at 280mm and glue the ends together so that it overlaps 10mm
That should give you a tube with 94mm by 90mm
It is meant to utilize a PVC-Tube as base structure.
Search for: 3" PVC-Pipe Scedule 40 (outside Diameter 3,5" or 88,9mm)
In German: PVC-U Rohr 90mm (outside Diameter 90mm)
lenght of the pipe should be 93,5 mm to create the Furnace Height of 122mm. I also added a file for the tube to print instead of using a PVC pipe.
Might add a more Fancy tube version later
Tinkercad link:https://www.tinkercad.com/things/lCSNIcnJpwP
