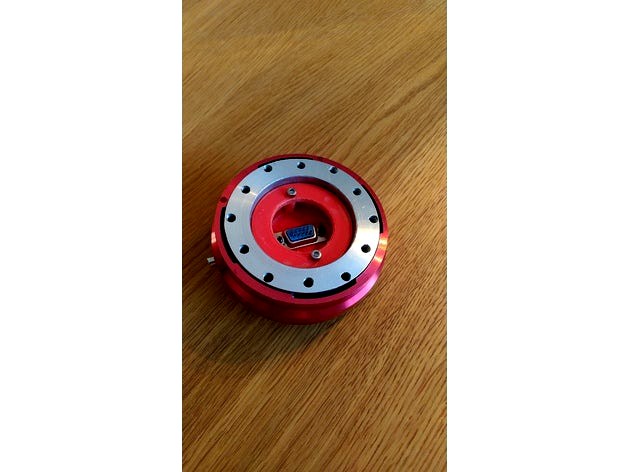

This thing will add a 15 pin VGA connector to ebay Quick Release slim type for your simulator.
With vga 15 pin connector you can use the original cables plus an extra usb for a arduino card etc. so you can add buttons or a screen to your steeringwheel.
Print out in PLA or ABS
You will need to use a 6mm drill bit and make place for countersunk screws so they sit flush with the thing for the vga connectors, if not there will be no space for them.
Use 4 M3x8 Countersunk screws.
Use 4 M3 nuts to secure the 4 countersunk screws.
Use 2 M3x8 countersunk screws to connect wheelpart 1 & 2
If the screws dont fit when printed, drill with 2.5mm drillbit where wheelpart 1 and 2 will be screwed together, all other holes use 3mm drillbit.
To connect this to the Thrustmaster base, go to my basepart:https://www.thingiverse.com/thing:2781811
Shopping list:
ebay quick release slim type
Male and Female 15 pin VGA connectors solder type (RS232 serial connectors should also work)
6 M3x8mm countersunk screws
4 M3 nuts
wiring for the VGA connectors to the sim base and whatever you want to connect to your steering wheel, arduino for buttons, screen or whatever...
Update:
wheelpart 1 and hubpart is now ready for countersunk screws.
All files scaled correct (if you have the old files they need 1000% scale in cura)
Added a cable holder you can use instead of nuts on basepart, so you dont twist the cable, secure it with a ziptie
Wiring example can be found on my blog: https://mortenstechcave.blogspot.no
