Slide Rule by codemonky
by Thingiverse
Last crawled date: 5 years, 4 months ago

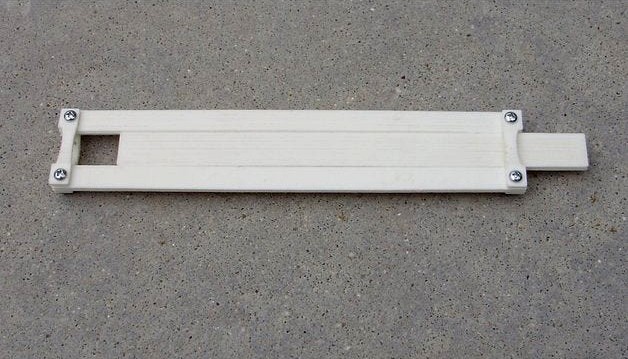

A very simple slide rule design.
The upper slide is also the lower slide. It uses 4-40 screws (3 mm).
The cursor upper and lower support are to be tapped for #2-56 screws. Three screws per each, with the middle on one side and the other two on the other side.
The reticle is 0.030" clear PET. You may want to countersink the screws.
I'm still working on a plotter fixture to draw the lines using fine drafting pens.
Printed in PLA.
The upper slide is also the lower slide. It uses 4-40 screws (3 mm).
The cursor upper and lower support are to be tapped for #2-56 screws. Three screws per each, with the middle on one side and the other two on the other side.
The reticle is 0.030" clear PET. You may want to countersink the screws.
I'm still working on a plotter fixture to draw the lines using fine drafting pens.
Printed in PLA.
