Slic3r Infill / Hesine M-505 Config
Slic3r 1.2.9 Config
High Quality 0.1 mm - GCODE: 212 KB (1,98g / 13 Min 25 Sec)
Fine 0.2 mm - GCODE: 153 KB (1,83g / 7 Min 55 Sec)
Wizard 0.3 mm - GCODE: 138 KB (2,02g / 6 Min 28 Sec)
Quick 0.4 mm - GCODE: 142 KB (5,10g / 6 Min 17 Sec)

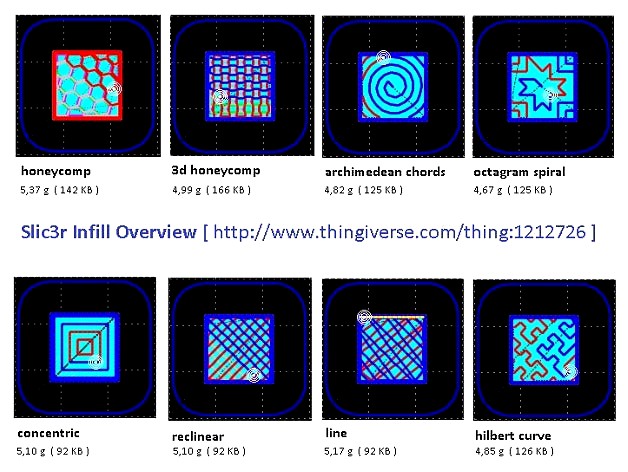

Slic3r Infill
Honeycomp - GCODE: 142 KB (5,37g / 6 Min 26 Sec)
3D Honeycomp - GCODE: 166 KB (4,99g / 6 Min 19 Sec)
Archimedean Chords - GCODE: 125 KB (4,82g / 6 Min 19 Sec)
Octagram Spiral - GCODE: 105 KB (4,67g / 6 Min 15 Sec)
Concentric - GCODE: 92 KB (5,10g / 6 Min 17 Sec)
Reclinear - GCODE: 92 KB (5,10g / 6 Min 18 Sec)
Line - GCODE: 92 KB (5,17g / 6 Min 19 Sec)
Hilbert Curve - GCODE: 126 KB (4,85g / 6 Min 20 Sec)
Slic3r Wizard for Hesine M-505
Wizard - Firmware: RepRap
Wizard - Bed: Size xy=210-210 / Origin=0-0
Wizard - Nozzle Diameter: 0.4 mm
Wizard - Filament Diameter: 1.75 mm (org: 3.0 mm)
Wizard - Extrusion Temperature: 190 'C PLA (org: 200 'C)
Wizard - Bed Temperature: 55 'C PLA (org: 0 'C)
Hesine M-505 (Prusa i3)
Hesine M-505-B ("B" ~ Black Version)
100 mm/s : Color Print Speed (Druckgeschwindigkeit)
0.1-0.4 mm : Layer thickness / Print Precision (Genauigkeit Höhe)
0.1 mm : max. Resolution (Genauigkeit Breite)
0.012 mm : XY-axis positioning accuracy (Positioniergenauigkeit Länge/Breite)
0.004 mm : Z-axis positioning accuracy (Positioniergenauigkeit Höhe)
0.4 mm : Extruder Nozzle Diameter (Extrudernadel Durchmesser)
1.75 mm PLA (recommended), ABS, HIPS, WOOD, PVA, Nylon : Print material
210-210-210 mm : max. Paper Size (max. Druckgröße)
210 'C : recommeted Nozzle Temperature / max. 250 'C (Nadel)
50-110 'C : Heating Plate Temperature (Heizbett)
Sanguino (Melzi V2.0) Board
Hesine M-505-B - Print Options
PLA : 190 'C Extruder / 55 'C Heatbed / 0.2 mm Layer thickness
ABS : 230 'C Extruder / 70 'C Heatbed / 0.2 mm Layer thickness
Slic3r 1.2.9 Config / Hesine M-505-B / optimized GCode
Print Settings: 0.3 mm
Details: Z-XY = 0.3 mm - 0.12 mm (reduce gcode size)
Layer - Heigh: 0.3 mm (z-Auflösung: Höhe der Druckschicht)
Layer - Quality: [x] Avoid crossing permiters (Linien durchgehend drucken)
Infill - Reduce Time: Combine infill = 2 Layer (Füllung alle 2 für 2 Schichten)
Infill - Reduce Time: [x] Only infill when needed (Füllung nur wenn notwendig drucken)
Advanced - Resolution: 0.12 mm (xy-Auflösung: Genauigkeit des Drucks)
Printing Cost
1 cm³ = 0.05 € = 0.01 € (kWh) + 0.04 € (g)
0.1 mm Layer
1 cm³ = 0.01 € (kWh) + 0.04 € (g) = 6 Min
Volumen: 1.000 cm³
Filament: 175 cm³ (220 g = 5.50 €)
Time: 1.100 Minutes (2.2 kWh = 1.10 €)
0.2 mm Layer
1 cm³ = 0.005 € (kWh) + 0.035 € (g) = 4 Min
Volumen: 1.000 cm³
Filament: 263 cm³ (330 g = 8.25 €)
Time: 900 Minutes (1.8 kWh = 0.90 €)
0.3 mm Layer
1 cm³ = 0.003 € (kWh) + 0.035 € (g) = 3 Min
Volumen: 1.000 cm³
Filament: 248 cm³ (310 g = 7.75 €)
Time: 700 Minutes (1.4 kWh = 0.70 €)
