Skywatcher AZ3 improved knobs by villamany
by Thingiverse
Last crawled date: 5 years, 2 months ago

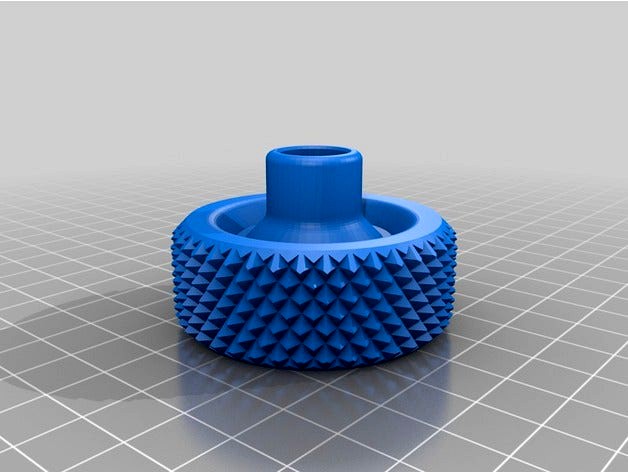

I'm disappointed with my AZ3 knobs, so i create these more comfortable ones, they make a very good difference:
-Tray knobs: I use 3pcs M5x25mm hex head bolts. Print 3pcs "trayKnob" and 3pcs "trayKnobBoltCover". Use contact glue for glue the covers after pressing the bolts.
-Slow movement knobs: I replaced the original ones. Print 2pcs "slowKnob". I use 2pcs M3x10mm hex allen bolts for fixing.
-Azimut brake knob: I replaced the original one. Print 1pcs azimutBrakeKnob. Redrill the main hole using a 8mm drill. I use a M4x16mm hex allen bolt and a M4 washer. Clean and use some contact glue on the rod before pressing into the knob, then press it and fix with the M4 bolt. (Note this part has a self contained support cylinder, remove it before assembling.)
-Tripod knobs: Print 3pcs, clean the holes, apply a contact glue drop on the original butterfly sides and press them into knob.
-Check out other AZ3 things:http://www.thingiverse.com/thing:2102051
-Updates: Feb/19/2017 Added tripod knobs and removed the "work in progress" flag of the thing.
