SKR v1.3 v1.4 adapter plate for CR-10s ControlBox by BE-3D
by Thingiverse
Last crawled date: 5 years, 1 month ago
Remix of a remix which was posted in the comments.

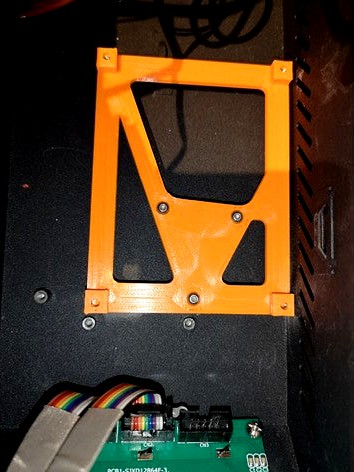

I thought, M3 screws into printed PLA do not hold for long. Since I had to fiddle with all the cables and stuff inside my control box I had to remove the board many times. Thus I changed the design a little, added the M3 nut pockets to make sure to hold the board and all drivers reliably.
also removed the fan holder. I already had a bigger fan inside, mounted with this: https://www.thingiverse.com/thing:2663113
That's why I also changed the position of the board to fit the big fan between board and display.
My next plan is to combine the board plate with the fan holder.
