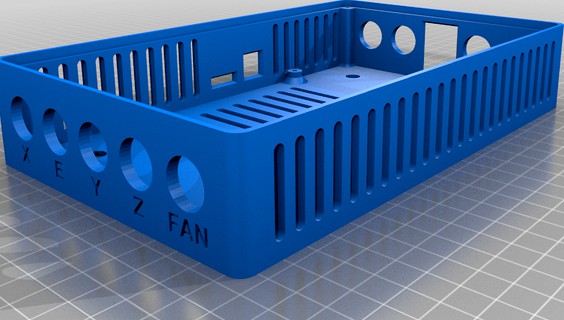

SKR v1.3 and SKR v1.4 Enclosure Box

Last crawled date: 5 years, 10 months ago

Skr v1.3-v1.4 enclosure box with 120mm Noctua NF-A12x25 FLX fan for best cooling.
Designed for Ikea Lack enclosure and other applications...
Requirements:
GX16 connector
3 x 6core GX16
2 x 4core GX16
2 x 2core GX16
1 x 5core GX16
1 x 8core GX16
https://www.aliexpress.com/item/32806759744.html
Noctua NF-A12x25 FLX - 3-Pin
https://www.amazon.com/gp/product/B07C5LRQD3/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
LM2596s DC-DC step-down power supply module
https://www.aliexpress.com/item/33004374185.html
