Singer Sewing Machine Tray by robatron
by Thingiverse
Last crawled date: 4 years, 10 months ago

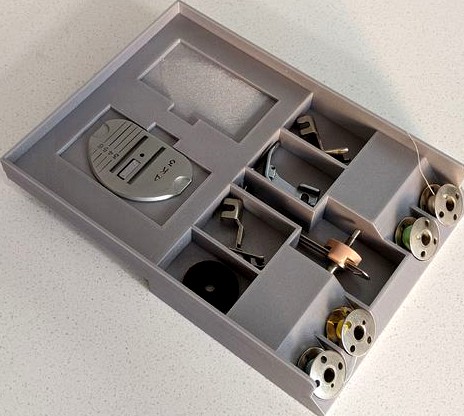

This is a replacement Singer sewing machine parts tray. More photos and details here
Support material is recommended. Here are the PrusaSlicer settings I used. Make sure that the first bridge layers are perpendicular to the support material!
Contact z distance: 0.01
Pattern: Rectilinear
Pattern spacing: 10mm
Pattern angle: 0
Interface layers: 0
XY separation: 100%
Don't support bridges: FALSE
There are three files:
sewing-tray-with-supports - Full tray with manual supports (recommended)
sewing-tray.stl - Full tray w/o supports
sewing-tray-design.f3d - Fusion 360 design file
Support material is recommended. Here are the PrusaSlicer settings I used. Make sure that the first bridge layers are perpendicular to the support material!
Contact z distance: 0.01
Pattern: Rectilinear
Pattern spacing: 10mm
Pattern angle: 0
Interface layers: 0
XY separation: 100%
Don't support bridges: FALSE
There are three files:
sewing-tray-with-supports - Full tray with manual supports (recommended)
sewing-tray.stl - Full tray w/o supports
sewing-tray-design.f3d - Fusion 360 design file
