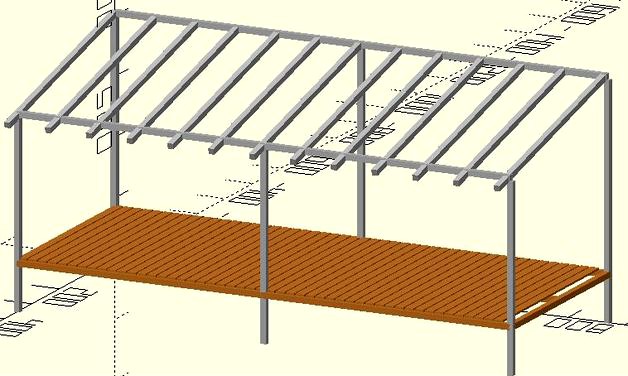

Customizable terrace. I wrote it to get a better idea how our terrace finally could look like. Use the code on your own risk. The code makes no static calculations. No warranty that the design would function in real world. It is just intended for visualization purpose, nothing else.
Please follow these easy steps to get the STL file of this model:
install openSCAD: https://www.openscad.org (it is free of charge)
open the scad file of this thing
adjust the parameters as you like (overall dimensions, etc.)
render the design by pressing F6
export to STL by pressing F7
Version 0.02 comes with an optional fence around the terrace.
Version 0.03 comes with an optional railguard around the terrace.
