Simple Signal Light with Wall Mount by RBEPrinter
by Thingiverse
Last crawled date: 4 years, 8 months ago

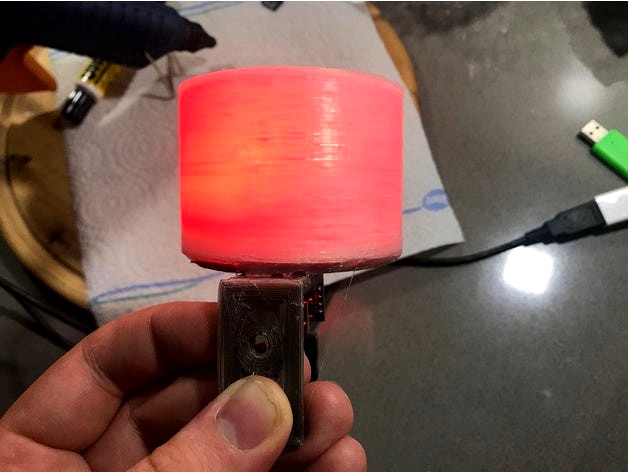

A simple signal light with wall mount.
I used an Arduino nano and a rgb led to light up the transparent dome.
The hole in the base is for the usb cable of the Arduino.
In my case I used a atmega8 with an mcp2515 can chip so it can show specified can bus messages via color. The dome is scalable so you can create a smaller/bigger version of it.
PARTS
some glue
4 WS2811 led chips
Arduino nano/pro mini or attiny in my case
CODE IS IN FILES main.cpp for example controlling
