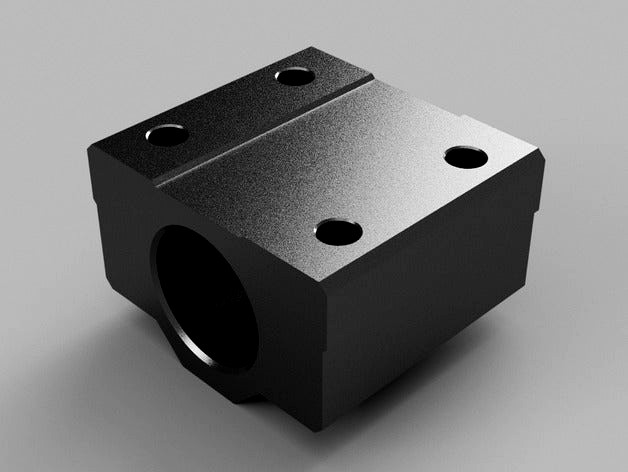

This is a simple SC8UU bearing block used in some Y carriages of Prusa Style Printers. It should be compatible with LM8UU bearings and any size-equivalent bearing
I want to convert my Y-Carriage to IGUS bearings and didn't want to change the way my carriage was mounted on the smooth rods.
Outer Dimensions when viewing from the top:
Height: 22mm
Width: 34mm
Length: 31mm
Hole Dimensions:
Hole Distances: 24mm and 18mm respectively
Screw Holes: 4mm
Bearing Hole: 15.2mm
Disclaimer:
I have not yet printed this myself, so please let me know if anything is terribly wrong with it.
