Shot Timer Case by AcKyL

Last crawled date: 4 years, 7 months ago

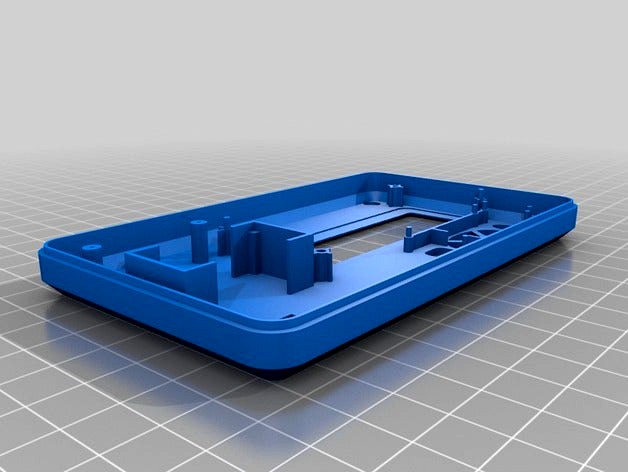

This is the lid of the case for a Shot Timer used for IPSC.
Note: This is just the lid, you need the bottom part and buttons from the original creator.
I modified the lid on the case that Vector_Mayhem created:http://www.thingiverse.com/thing:142282
Hardware in use:
Arduino UNO rev3 copy (http://www.banggood.com/UNO-R3-ATmega328P-Development-Board-For-Arduino-No-Cable-p-964163.html)
DF Robot LCD Keypad (http://www.banggood.com/Keypad-Shield-Blue-Backlight-For-Arduino-Robot-LCD-1602-Board-p-79326.html)
Sound Sensor (http://www.banggood.com/Sound-Sensor-Detection-Module-LM393-Chip-Electret-Microphone-p-929245.html)
Switch (http://www.banggood.com/20Pcs-SS12D00G3-2-Position-SPDT-1P2T-3-Pin-PCB-Panel-Mini-Vertical-Slide-Switch-p-1000847.html)
Piezo Buzzer (http://www.banggood.com/3-24V-Piezo-Electronic-Tone-Buzzer-Alarm-95DB-Continuous-Sound-p-919348.html)
Lipo Battery (http://www.banggood.com/ZOP-Power-7_4V-650mAh-25C-Lipo-Battery-JST-Plug-p-991741.html)
Code can be found at Github: https://github.com/Bjorn-b/Shottimer_Arduino
