Sharingan Extruder Knob Collection by Brickbox
by Thingiverse
Last crawled date: 4 years, 5 months ago
I designed these extruder knobs for my Ender 5 Pro. I have the Microswiss Direct Drive kit and it fits on that, It also fits on my stock CR10 with a printed DD mount so I'm confident it will fit on any Ender printer with or without direct drive as long as you have clearance. (I'm looking at you, petsfang ducts.)

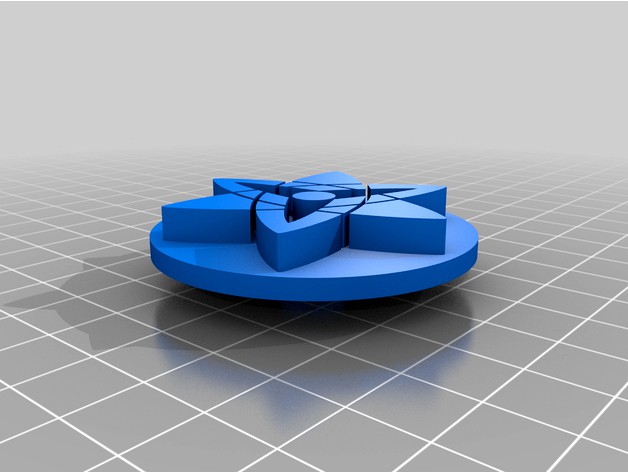

Each extruder knob has 2 parts, the base and the insert. I recommend using Esun Fire Engine Red for the insert and Overture Matte black for the base.
The insert parts should be printed at 99.9% size to allow clearance for press-fit.
On most of these you wont need supports and I suggest printing coupler-side up, especially if you have a glass bed.
This is the first thing I have ever made on fusion 360, so I will be updating these as the need arises.
50mm diameter
EDIT:
I added a v2 of every design, these v2 versions are negatives of the originals, for those who want to print the base red and the insert black.
the Sharingan users i have made are as follows:
Indra
Itachi
Izuna
Madara
Obito
Sasuke
Shin
Shisui
Each extruder knob has 2 parts, the base and the insert. I recommend using Esun Fire Engine Red for the insert and Overture Matte black for the base.
The insert parts should be printed at 99.9% size to allow clearance for press-fit.
On most of these you wont need supports and I suggest printing coupler-side up, especially if you have a glass bed.
This is the first thing I have ever made on fusion 360, so I will be updating these as the need arises.
50mm diameter
EDIT:
I added a v2 of every design, these v2 versions are negatives of the originals, for those who want to print the base red and the insert black.
