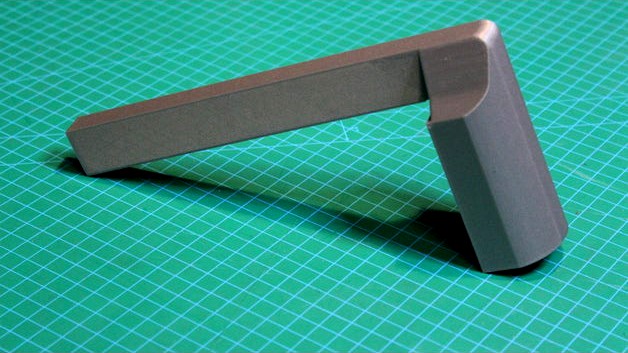

Set Square by BSkorn
by Thingiverse
Last crawled date: 4 years, 8 months ago
Set Square
I designed this to play around with locating pins and how accurate the positional
repeatability would be for different sizes and materials.
Print model and snap together, parts have been designed with a tight fit to minimize the flatness, position and parallel error on the datum plane.
